Carbon Hunting Arrows: How Carbon Fiber Grade (T24–T46) and Weave Affect Penetration & Accuracy – WzArrows

For hunters, every shot is a moment of truth. The arrow that leaves your bow must fly straight, hit hard, and penetrate deep. While most discussions focus on spine, diameter, or broadheads, the foundation of every hunting arrow is often overlooked: the carbon fiber itself.

As an OEM manufacturer, we believe that understanding the material science behind your hunting arrows is essential for building products that hunters trust. This guide explains how different carbon fiber grades (T24–T46) and weave patterns (unidirectional vs. 3K woven) affect hunting arrow performance – from penetration to accuracy to durability.

👉 For a complete overview of our hunting arrow OEM capabilities, contact our team →

Part 1: Carbon Fiber Grades – T24, T30, T40, T46 Explained

Carbon fiber is classified by its tensile modulus (stiffness) and tensile strength. The “T” number (e.g., T24, T30, T40, T46) indicates the grade – higher numbers mean higher stiffness and typically higher strength.

How Carbon Grade Affects Hunting Arrow Performance

Stiffness (Modulus)

• Higher modulus (T40/T46) : Arrow flexes less upon release – critical for high‑poundage compound bows and heavy broadheads. Reduced flex means less energy loss and straighter flight.
• Lower modulus (T24/T30) : More forgiving for lower‑draw‑weight bows or beginners. Slight flex helps correct minor form errors.

Penetration

• Stiffer arrows (T40/T46) transfer more kinetic energy directly to the target. Energy is not wasted bending the shaft, resulting in deeper penetration – essential for large game with thick hide and bone.

Durability

• Higher‑grade carbon (T40/T46) typically has higher fiber density, making shafts more resistant to impact damage from bone or rock strikes.

Weight

• Higher modulus carbon allows thinner walls for the same stiffness – enabling lighter arrows that still penetrate deeply.

Ready to specify carbon grade for your compound bow arrow line? Check our OEM blank shaft page for available T24, T30, and T40 options.

Our Standard Offering for Hunting Arrows

👉 See our 8.0mm heavy‑duty hunting arrows for T40 and T46 options →

While carbon fiber grade determines the shaft’s backbone, the complete hunting arrow system also depends on broadheads, inserts, nocks, and fletching. For a deep dive into each component – from spine requirements to testing protocols – refer to our comprehensive guide on Hunting Arrow Components for OEM Brands.

Part 2: Unidirectional vs. 3K Woven Carbon – Performance vs. Aesthetics

Carbon fiber arrows are typically constructed using two types of prepreg: unidirectional (UD) and woven (3K plain/twill) . Each serves a distinct purpose.

Unidirectional (UD) Carbon Prepreg – The Performance Core

Why UD is ideal for hunting arrows :

• Maximum stiffness – All fibers work together to resist bending
• Energy efficiency – No fiber crossover means no energy loss from fiber waviness
• Lighter weight – Higher fiber volume fraction allows thinner, lighter shafts

Most of our hunting arrow shafts use UD carbon prepreg (T24–T46) for the inner layers – this is where performance is built.

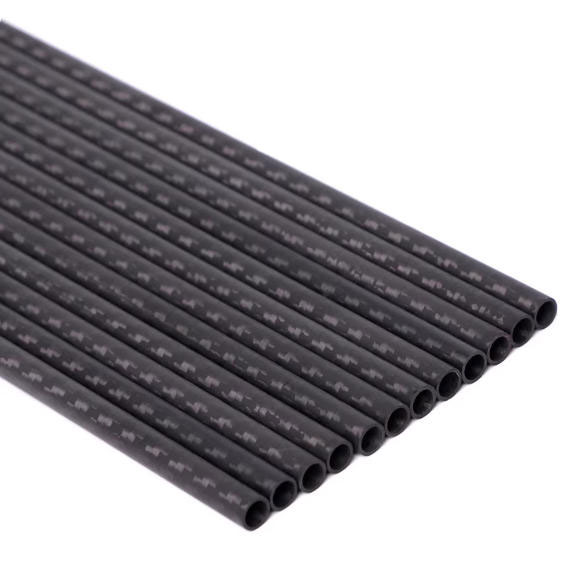

3K Woven Carbon Prepreg – The Decorative Outer Layer

Important note: The 3K woven layer is primarily cosmetic. It adds minimal structural benefit to arrow shafts because the fibers are not aligned with the load direction. However, it provides:

• Premium appearance – The iconic carbon weave look that hunters love
• Brand differentiation – Customizable with colored resins or clear coats
• Scratch resistance – The woven outer layer can offer slight surface protection

How We Combine UD and 3K in Hunting Arrows

OEM Note: We can produce hunting arrows with or without the 3K woven outer layer. For cost‑sensitive lines (club arrows, entry‑level hunting), we recommend UD‑only with matte black finish. For premium hunting lines, the 3K woven layer adds perceived value and visual appeal.

The material grades discussed above directly translate to field performance. For whitetail hunters specifically, selecting the right carbon fiber grade and shaft diameter can mean the difference between a clean pass‑through and a wounded animal. Read our detailed guide on High‑Quality Carbon Arrows for Deer Hunting to understand how these technical features perform in real‑world deer hunting scenarios.

Part 3: Why Material Science Matters for Your Hunting Arrow Brand

When you source hunting arrows from WZARROW, you are not just buying components – you are investing in engineered carbon fiber systems. Here is what sets us apart:

• Vertical material control – We source and qualify our own carbon prepreg (T24–T46, UD and 3K woven)
• Layer‑by‑layer design – We engineer the number of UD layers, fiber angles, and outer weaves for each shaft specification
• Batch‑level traceability – Every production batch is tested for spine, straightness, and weight – with documented reports
• Custom cosmetic options – Choose plain or twill 3K weave, colored resins, or matte/gloss clear coats

Hunting conditions vary greatly by region. In Canada, where hunters face extreme cold, wet weather, and large game like moose and black bear, carbon fiber selection becomes even more critical. Our research on Hunting Arrows in Canada covers kinetic energy requirements, legal standards, and environmental considerations specific to Canadian hunters – a valuable resource for brands targeting this market.

Conclusion: Choose the Right Carbon for Your Hunting Arrow Line

Carbon fiber grade (T24–T46) and weave pattern (UD vs. 3K woven) are not just technical details – they directly affect how your hunting arrows perform in the field. Higher grades deliver stiffer, stronger shafts for deep penetration on large game. The 3K woven outer layer adds premium aesthetics without compromising performance.

As an OEM manufacturer with full control over our carbon prepreg sourcing and arrow layup process, we help hunting brands build arrows that hunters trust.

Ready to develop your hunting arrow line? Contact our OEM team to discuss carbon grades, weave patterns, and custom specifications.
