How to select Carbon Arrow Shaft: Spine, Straightness, and Weight Tolerances Explained

What OEM Brands Must Know to Specify Consistent, High-Performance Arrow Shafts

The carbon arrow shaft is the foundation of every arrow you sell. Yet many OEM brands treat shaft specification as a commodity decision—focusing only on price and availability.

This is a missed opportunity. Shaft quality is the single largest differentiator between premium and commodity arrow lines.

This guide explains the three critical specifications that define carbon arrow shaft quality—spine, straightness, and weight consistency—and how to specify them for your OEM production.

Specification 1: Spine (Static Stiffness)

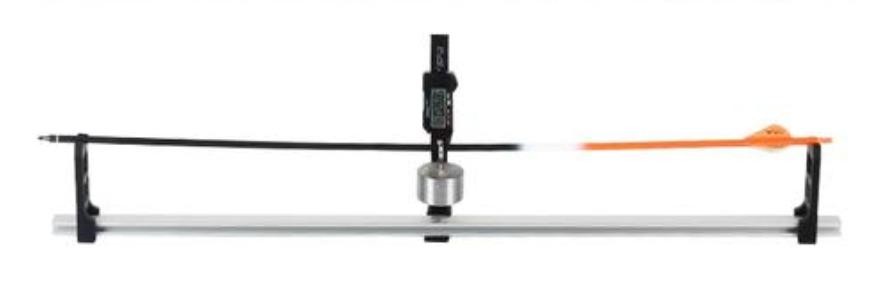

What It Is: The measurement of an arrow’s resistance to bending, expressed in thousands of an inch of deflection under a 1.94lb weight.

The Scale: Lower number = stiffer arrow (e.g., 300 spine is stiffer than 500 spine).

OEM Decision Factors:

Target Bow Poundage:

Arrow Length: Longer arrows require stiffer spine (lower number) at the same poundage.

Point Weight: Heavier points require stiffer spine.

OEM Responsibility: Provide spine selection charts with every arrow model. Do not assume customers know how to match spine to their setup.

Specification 2: Straightness Tolerance

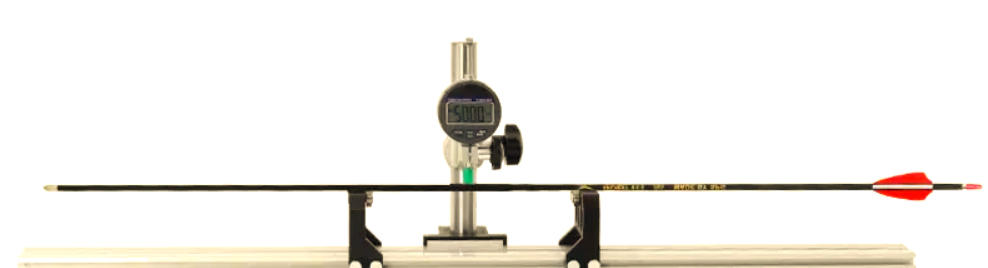

What It Is: The maximum deviation from perfectly straight, measured in inches per shaft.

The Scale:

• ±0.001″: World-class competition grade
• ±0.0025″: Premium target/hunting grade
• ±0.003″: Standard commercial grade
• ±0.004+” : Entry-level/bulk grade

What It Means for Your Brand:

OEM Strategy: Differentiate product tiers by straightness tolerance. Do not sell ±0.004″ shafts in premium packaging.

Specification 3: Weight Tolerance

What It Is: The variation in weight between individual shafts of the same model and spine.

Why It Matters: Inconsistent shaft weight creates inconsistent trajectory. An archer who tunes for one arrow cannot shoot another arrow with the same point of impact.

Industry Standards:

• ±1.0 grain: World-class matching (premium)
• ±2.0 grains: Excellent matching (premium hunting/target)
• ±3.0 grains: Good matching (standard commercial)
• ±5.0+ grains: Poor matching (budget)

OEM Best Practice: Specify grain-matched batches for premium product lines. Sort shafts by actual weight and package matched sets.

The Interrelationship: Spine, Straightness, and Weight

These three specifications are independent—a shaft can be straight but inconsistent in weight, or weight-matched but variable in spine.

Premium manufacturers control all three:

1. Spine tolerance within ±50 deflection units
2. Straightness within ±0.0025″ or better
3. Weight within ±2.0 grains

Commodity manufacturers control only basic spine range.

OEM Implication: Your shaft supplier’s quality control processes directly determine your brand’s reputation.

Inner Diameter Selection Revisited

Different diameters serve different markets:

Raw Shafts vs. Finished Arrows

Option 1: Blank Carbon Arrow Shafts

• You receive uncut, unfletched, uninserted shafts
• You perform all assembly operations
• Maximum control, maximum investment

Option 2: Semi-Finished

• Shafts cut to length, inserts installed
• You add nocks, fletching, points
• Balance of control and efficiency

Option 3: Finished Arrows

• Complete arrows, ready to sell
• Minimum labor, maximum consistency
• Ideal for most OEM brands

Discuss Your Arrow Production Model with Us.

OEM Specification Checklist

When sourcing blank carbon arrow shafts, specify:

☐ Diameter: ______ mm
☐ Spine: ______ (±______ tolerance)
☐ Straightness: ±“
☐ Weight tolerance: ± grains
☐ Length: ______” (cut/uncut)
☐ Surface finish: Matte/Gloss/Custom
☐ Batch matching: Yes/No

Conclusion: Quality Is Not Accidental

Consistent, high-performance arrow shafts do not happen by accident. They are the result of rigorous specification, careful supplier selection, and systematic quality control.

We manufacture carbon arrow shafts in all five diameters, with competition-grade straightness, precise spine tolerances, and grain-matched weight consistency. Contact Our Shaft Specialists to discuss your OEM requirements.
