How to Match Arrow Components: A Technical Guide for Arrow Brands

Ensuring Compatibility Between Shafts, Points, Nocks, Vanes, and Hardware

---

Component incompatibility is the leading cause of field failures in branded arrow lines.

A shaft that does not perfectly match its nock. An insert pin that fits loosely. A broadhead that refuses to thread. These problems erode brand trust, generate returns, and frustrate end-users.

This technical compatibility guide provides systematic methods for ensuring every component in your arrow system works together flawlessly—before your products reach customers.

---

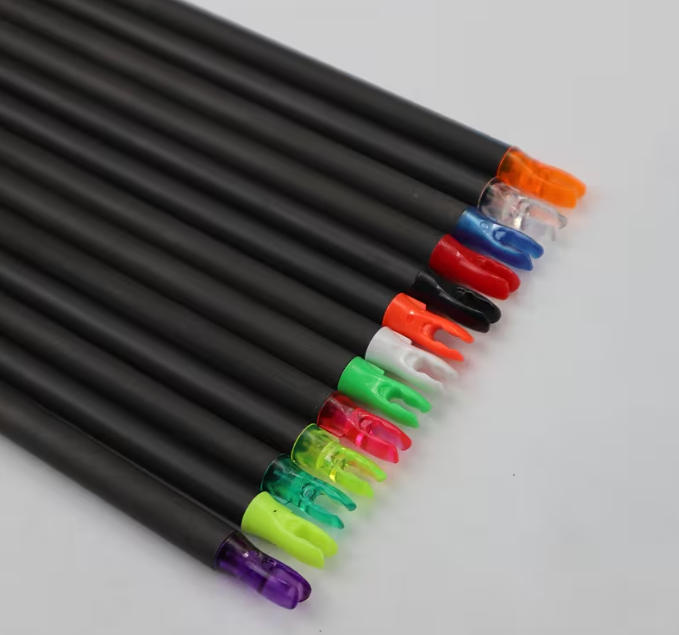

Compatibility Dimension 1: Shaft to Nock

The Golden Rule: Nock fit must be snug but not forced.

For Insert Nocks:

• Measure shaft inner diameter (ID) precisely
• Nock stem diameter should be 0.05-0.10mm larger than shaft ID
• Creates interference fit plus adhesive bond

For Over Nocks:

• Measure shaft outer diameter (OD) precisely
• Nock pocket ID should be 0.05-0.10mm smaller than shaft OD
• Creates compression fit plus adhesive bond

Warning Signs:

• Nock falls out of shaft → undersized nock or oversized shaft
• Shaft cracks during nock installation → oversized nock or undersized shaft

Browse Nocks by Diameter Specification

---

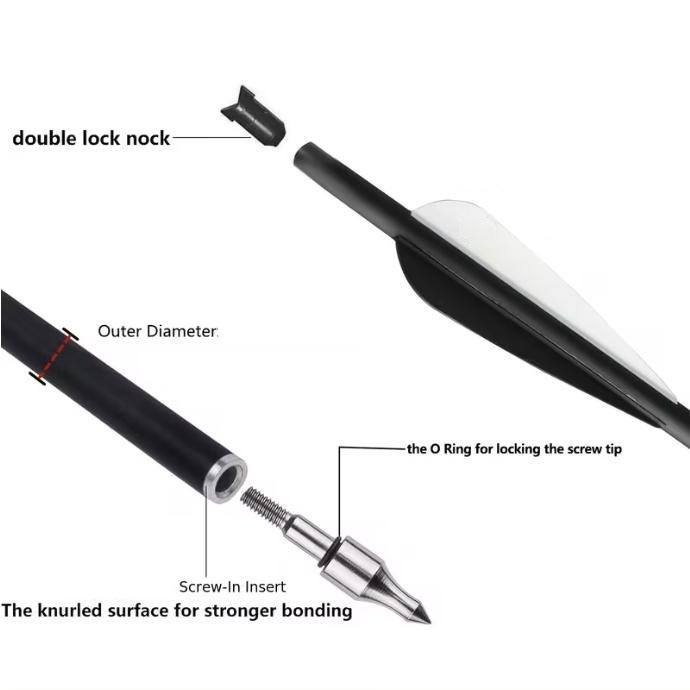

Compatibility Dimension 2: Shaft to Insert/Point

Thread Compatibility:

• 8-32 thread: Most common for target and hunting arrows
• 9/32″ thread: Common for larger diameter hunting shafts
• 5/16″ thread: Found on some traditional/wood arrows

Insert Compatibility:

• Glue-in inserts: Must match shaft ID precisely
• Universal inserts: Use adapter rings for imperfect matches

The 0.001″ Rule: For glue-in applications, the clearance between insert and shaft ID should not exceed 0.001″ (0.025mm) . Larger gaps create weak bonds and inconsistent spine.

Arrow Inserts & Adapter Rings

---

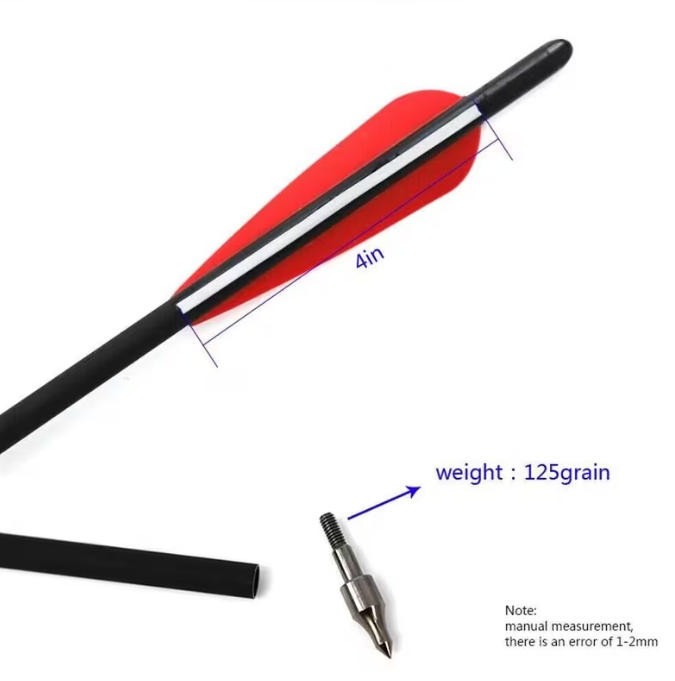

Compatibility Dimension 3: Point Weight to Spine

Every arrow spine has an optimal point weight range.

General Guidelines:

OEM Responsibility: Clearly label your arrows with:

• Recommended point weight range
• Acceptable broadhead types
• Spine selection charts

---

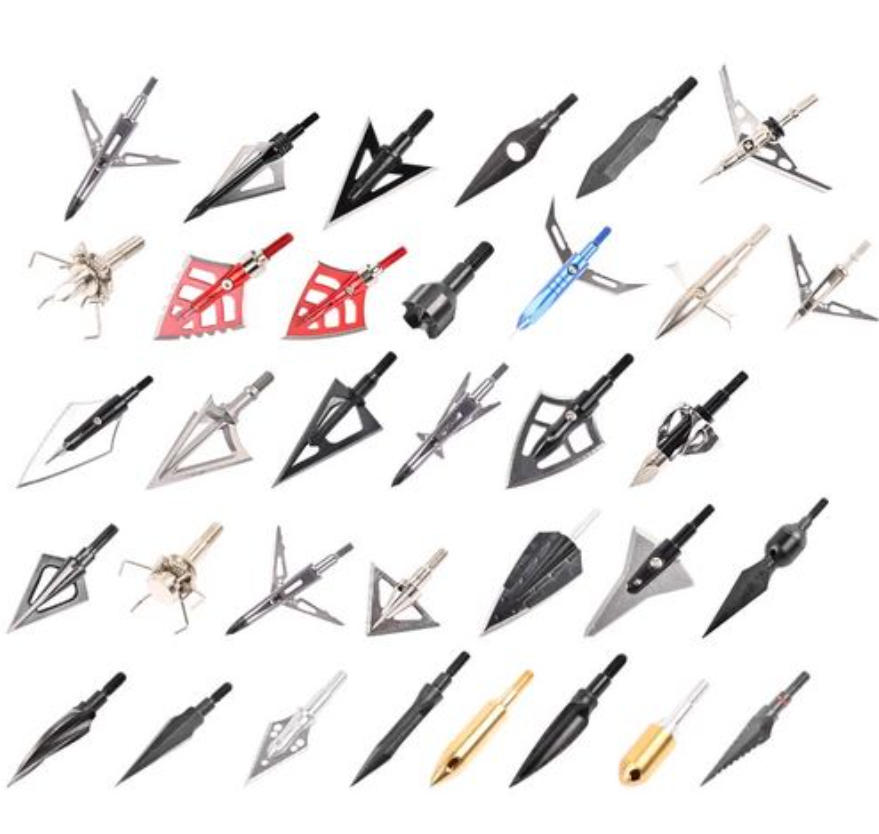

Compatibility Dimension 4: Broadhead to Arrow

Fixed-Blade Broadheads require:

• Sufficient spine stiffness (typically 400 spine or stiffer)
• Helical fletching for stabilization
• Strong insert/point connection (reinforced pins recommended)

Mechanical Broadheads require:

• Consistent arrow speed (must meet minimum deployment velocity)
• Reliable blade retention during flight
• Accurate weight matching (varies less than fixed blades)

Critical Warning: Testing broadheads on your arrow platform is non-negotiable. Do not assume compatibility without verification.

---

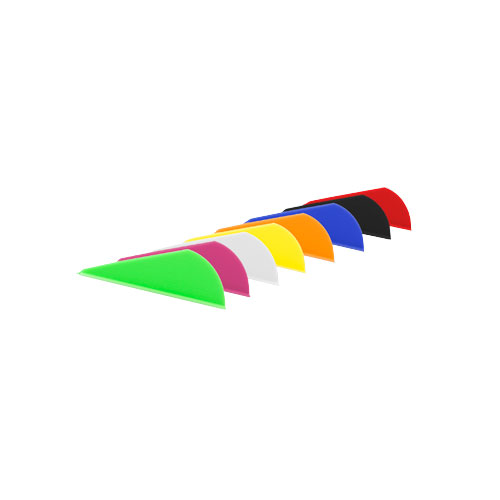

Compatibility Dimension 5: Vane Profile to Bow Type

Compound Bows with Capture Rests:

• Any vane profile works
• Shield and tear drop most common
• Height: 0.5″ to 2.0″

Compound Bows with Drop-Away Rests:

• Any vane profile works
• Low profile vanes preferred for speed
• Height: 0.5″ to 1.5″

Recurve/Traditional Bows (Off-Shelf):

• Feathers only (or low-profile vanes with rest)
• Height: Feathers 0.5″+ ; Vanes under 0.5″
• Banana profile for enhanced clearance

Crossbows:

• Low profile only (0.4″ to 0.8″)
• Stiff material compounds
• Straight or slight offset only

Select Vanes by Bow Type

---

Compatibility Dimension 6: Adhesive to Substrate

OEM Best Practice: Include adhesive recommendations with every arrow shipment. Do not assume customers know which glue to use.

---

Creating Your Component Compatibility Matrix

A professional OEM brand should provide documented compatibility specifications for every arrow model:

Example: 5.2mm Multi-Purpose Hunting Arrow

---

Conclusion: Compatibility Is a Design Responsibility

Compatibility is not the customer’s problem—it is the manufacturer’s responsibility.

When you source all components from a single, vertically integrated supplier, compatibility is guaranteed. When you mix components from multiple sources, you become the integrator—and any failures become your failures.

We supply complete, pre-tested component systems—shafts, points, nocks, vanes, pins, and rings —guaranteed compatible with every arrow we offer. Contact Our OEM Engineering Team to discuss your next project.
